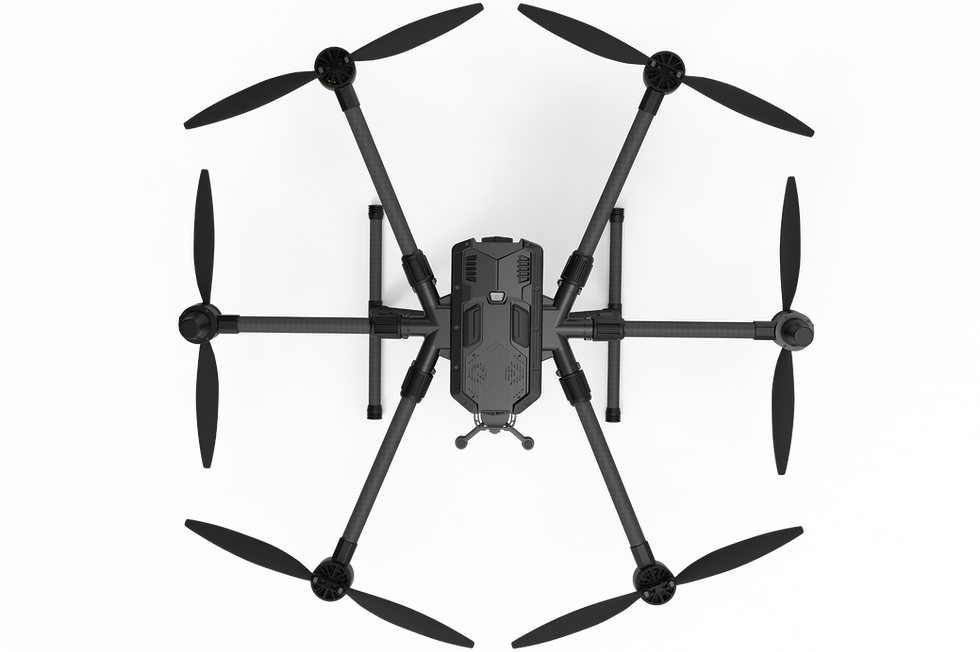

YUNEEC H850 RTK
The H850-RTK is hexacopter with up to 65 Min flight times, safety and flexibility, developed for law enforcement, search and rescue, security, construction, surveying and mapping applications. Its rugged design, water proof and reliable precision compass provides a stable and precise flight envelope, and numerous safety features make the H850-RTK the ultimate drone for commercial and professional operators.
Price does not include Camera
Tornado H850 Tech Specs
- Weight: 5800gr, includes 2 flight batteries (w/o payload)
- MTOW: 8800g
- Max Payload Weight: 3000g
- Diagonal Size: 850mm
- Unfolded: 440×365×470 mm
- Max Ascend Speed: 3 m/s
- Max Descent Speed: 2-5 m/s
- Max Horizontal Speed: 20 m/s
- Max Flight Speed: 72 km/h
- Max. Flight Ceiling (MSL): 5000m
- Max Flight Time: 65 minutes (without payload)
- Battery 23,1volt: 2x Li-ion HV, 6S,12800mAh
- Position System: GPS, Glonass, Beidou&Galileo
- Hovering Accuracy(Single): Horizon:±0.5m
- Vertical:±0.5m
- RTK(RMS) Accuracy: 1cm +1ppm(H); 1.5cm+1ppm(V)
- Operating Temperature: -20℃-50℃
- -4° F -122° F
- Payload Connector: X-connector
- Compatible Payloads : E20TVx, E90X, E30Zx, ETx, S42x, lidar, Spotlight and digital loudspeaker
- Upward Gimbal: Optional
- Hot-swappable Batteries & Payloads: Yes
- IP: x5
- Collision Avoidance System: Millimeter-wave Radar (optional)
- Remote Controller: T-One
- Connectivity Ports and Power Supply H850:
- GMAC 1000Mb, USB-C, USB-3 5Gbps, Aux 3.5 mm, Micro-SD, 2x Power 5v+GND, 2x PWM,2x GPIO, 5v,12v&19,8-26,4v, for external devices with high power requirements.
- Operating Frequency: 2.4000-2.4835GHz & 5.725-5.850GHz
- Autopilot: PX4 Based
- Drone Remote Identification Device (EU): LTE+Bluetooth, incl. app and U-space ready (optional module).
T-One GCS Tech Specs
- 7-inch touch screen
- 920x1200 screen resolution
- 1000 nit luminance
- 15 km range Fcc
- 8 km range Ce
- 8 hours of operation time
- 10.000 mAh/7.4-volt battery
- 40 Mbps dual-band
- Dynamic Frequency hopping
- IP x4
- Cortex A72&A53 high-performance processor
- Android 10
- 32Gb ROM / 4 Gb RAM
- HDMI
- USB-C, USB-3 & USB-2
- Micro SD
- 1.2 kg only
- No data sharing
RTK GNSS
- RTK (Real-Time Kinematic) module for high accuracy relative positioning: 1cm +1ppm(H); 1.5cm+1ppm(V)
- Dual RTK-antenna for high precision positioning. The dual antennas on the H850-RTK ensure that one antenna is always transmitting in the event that one becomes disabled
- Keep cm precision in even GNSS challenging environment
- Built for faster and more precise mapping (e.g. complex surveying, inspections, mapping, 3D displays)
- 5 Hz update rate of position, velocity and time
- All data including raw GNSS data and real-time solutions can be logged on board - ready for PPK (Post Processed Kinematics)
- Support signals of up to four GNSS constellations among GPS, GLONASS, Galileo and BeiDou
- Compatible with all existing Yuneec H520E camera payloads
H850 Batteries
- Size: 98×58×149mmBattery
- Capacity: 12.800mAhBattery
- Wattage: 295.68Wh
- Standard Voltage: 23.1v (3.85v/cell)
- Charging Voltage: 26.4v
- Battery Type: Li-ion
- Fast Charge: 1C (10 Amp）
- Charging Time: 1,5 hours
- Max Continuous Discharge Current: 64AMaximum
- Discharge Current: 128A
- Weight: 1390 gram
- Operating Temperature: 0℃+45℃
C-BOX IntelligentBatteries Charging Stastion
- With the H850 Power Charging Case, you are able to charge four H850 batteries and two T-one batteries simultaneously!
- Thanks to the hard-case design you can store and transport the batteries safely.
- The compact design makes it able to carry the power Charging Case easily.
- 3.5” Color LCD Display1
- 140 watt (200v-250v)220/110 volt
- Transport caseEasy to operate
- Buzzer alarm
- Compact (370×270×220mm)
- Foam cover battery protection
Whats in the box
- 1x H850-RTK
- 2x Flight battery
- 1x T-one GCS controller
- 1x T-one battery
- 1x Transport case
- 1x Charger case
- 1x Repair tool kit
- 1x Quick start guide
- 1x Reference card
