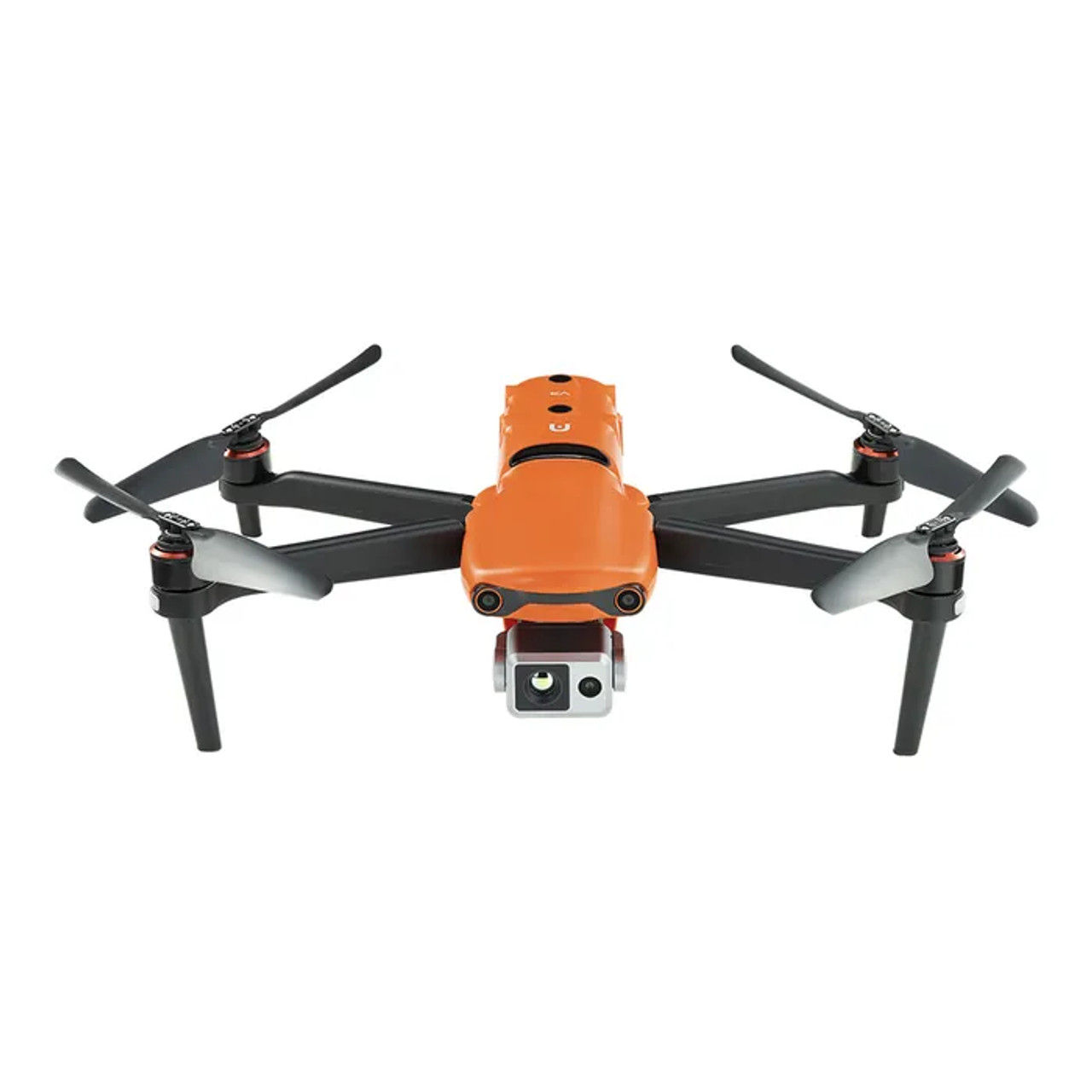

EVO II 640T V3
The Autel Robotics EVO 2 Dual 640T V3 is the most compact and advanced thermal drone on the marke, with thermal resolution of 640x512, the EVO 2 Dual 640T V3 enables pilots to capture subjects with great detail from up to 100 meters - 4x farther than any aircraft of its class. The 25Hz refresh rate produces smooth dynamic thermal movement by matching thermal images to video frame rate. This package is ideal for many applications - including but not limited to power line inspections/firefighting/law enforcement/search and rescue operations/chemical plant inspections and solar farm inspections.
Autel Robotics EVO II DUAL 640T V3 delivered globally by Express shipment within 7 working days
Please refer to the shipping costs in your shopping cart
Autel Robotics products and accessories are guaranteed against manufacturing defects for the period of 12 months (3 months for batteries)
Warranty is based on the original date of purchase. ORZ Systems sole obligation in the event of such defects during this period is to repair or replace the defective part or product with a comparable part or product at ORZ Systems sole discretion. Depending on the nature of the repair and in order to provide the fastest possible service to our customers, ORZ Systems may replace components under warranty rather than repair them. Replacements will have the same functionality and will be similar in appearance, but may have slight cosmetic differences. Except for such repair or replacement, the sale, processing or other handling of this product is without warranty, condition or other liability. Damage (including crash damage) resulting from use, accident, or normal wear and tear is not covered by this or any warranty. ORZ Systems assumes no liability for any accident, injury, death, loss, or other claim related to or resulting from the use of this product. In no event shall ORZ Systems be liable for incidental or consequential damages relating to or resulting from the use of this product or any of its parts. Please review the instructions carefully when using the products. Returns or replacements of parts and/or products may be subject to shipping, handling, replacement and/or restocking fees. IMPORTANT NOTE: Crash damage is NOT covered under warranty.
Thermal Camera
Infrared camera sensor: Uncooled VOx Microbolometer
Sensor resolution: 640x512
Pixel pitch: 12 µm
Wavelength range: 8~14 µm
Focal Length: 13mm
FOV: H33°V26°
Zoom: 1 ~ 8x
Camera resolution:
Infrared mode: 640x512
Picture in Picture: 1920x1080, 1280x720
Photo shooting mode:
Single shooting, continuous shooting,
time-lapse shooting
Video Resolution: 640x512 30fps
Video format: MOV / MP4 (support H.264/H.265)
Temperature Measurement Accuracy:
±3? or ±3% of reading (whichever is greater) @ambient temperature -20?~60?
Temperature Range:
High gain mode: -20° to +150°C
Low gain mode: 0° to +550°C
Accurate Temperature Measurement Distance: 2-20 meters
Please note the following when switching to the EVO II Dual 640T from the EVO II Pro
*Firmware upgrade: You can download the firmware package on the official website or contact certified Autel Robotics dealers to upgrade to version 2.5.1.1 or above.
*Software upgrade: Please download Autel Explorer from the APP Store, Google Play or 360 mobile assistant.
*Thermal imaging analysis tool: You can download this from the official website or contact certified Autel Robotics dealers.
RGB Camera
Image Sensor: 0.8" CMOS
Pixels: 50MP
Perspective: 79°
Lens:
EFL: 25.6 mm
Aperture: f/2.8–f/11
Focus Distance: 0.5m to any distance (with autofocus mode)
ISO Range:
Video: 100-6400 (auto)
Photo: 100-3200 (auto)
Zoom: 1-8x (Max 4x lossless)
Still Photography Modes:
Single Shot
Burst: 3/5 shots
Auto Exposure Bracketing (AEB)
Time-lapse: 3/5 shots
Still Photography Resolution:
8000*6000 (4:3)
7680*4320 (16:9)
4000*3000 (4:3)
3840*2160 (16:9)
Video Format: MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video Resolution:
8K 7680*4320 p25/p24
6K 5760*3240 p30/p25/p24
4K 3840*2160 p60/p50/p48/p30/p25/p24
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max Bitrate: 120Mbps
Aircraft
Takeoff Weight: 2.5 lbs (1150 g)
Max Takeoff Weight: 4.4 lbs (2000 g)
Diagonal Wheelbase: 15.6 inches (397 mm)
Aircraft Battery: 7100 mAh
Max Flight Time (standard):
EVO II Dual (640) 38min
Max Hovering Time (standard):
EVO II Dual (640) 33min
Max Level Flight Speed (Standard):
45mph (20 m/s) (Ludicrous)
Max Ascent Speed:
18mph (8 m/s) (Ludicrous)
Max Descent Speed:
9 mph (4 m/s) (Ludicrous)
Max Service Ceiling Altitude:
4.3 miles (7000 m) MSL
Max Wind Resistance: Force 8 wind
Operating Environment Temp: 14-104 °F (-10 -40°C)
Working Frequency: 2.4~5.8 GHz Dual bands
Hover Precision:
Vertical:
± 0.1m (with visual positioning in normal operation)
± 0.5m (with GPS in normal operation)
Horizontal:
± 0.3m (with visual positioning in normal operation)
± 1.5m (with GPS in normal operation)
Sensing System
Sensing System Type:
Omnidirectional Binocular Sensing System
Forward:
Accurate Measuring Range: 0.5 - 20m
Detection Range: 0.5 - 40m
Effective Sensing Speed: < 15 m/s
FOV: Horizontal: 60°, Vertical: 80°
Backward:
Accurate Measuring Range: 0.5 - 16m
Detection Range: 0.5 - 32m
Effective Sensing Speed: < 12 m/s
FOV: Horizontal: 60°, Vertical: 80°
Upward:
Accurate Measuring Range: 0.5 - 12m
Detection Range: 0.5 - 24m
Effective Sensing Speed: < 6 m/s
FOV: Horizontal: 65°, Vertical: 50°
Downward:
Accurate Measuring Range: 0.5 - 11m
Detection Range: 0.5 - 22m
Effective Sensing Speed: < 6 m/s
FOV: Horizontal: 100°, Vertical: 80°
Sides:
Accurate Measuring Range: 0.5 - 12m
Detection Range: 0.5 - 24m
Effective Sensing Speed: < 10 m/s
FOV: Horizontal: 65°, Vertical: 50°
Service Environment:
Textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on)
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.)
Downward: textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on)
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.)
Gimbal
Operation Range:
Pitch: -135° to +45
Yaw: -100° to +100°
Operation Range:
Pitch: -90° to +30°
Yaw: -90° to +90°
Stability: More Stable with 3 Axies
Max Control Speed (Tilt): 300°/s
Angular Vibration Range (°): ±0.005°
Remote Controller
Max Signal Transmission Distance:
5.5 miles (9km) FCC, 3.1 miles (5km) CE
Working Frequencies:
2.4~5.8 GHz
Real-Time Transmission Quality:
720p@30fps / 1080p@30fps
Max Bitrate of Real-time Transmission: 40Mbps
Remote Controller Battery: 5000mAh
Operating Hours: 3h
Charging Time: 2h Fast Charging
Display:
3.26-inch OLED screen
854 (W)*480 (H) pixels
Preview video without the need for connecting to a mobile phone
1.7A@3.7V
Battery
Battery (mAh): 7100mAh
Voltage (V): 11.55
Transmission Power (2.4G): 13.2
Battery Type: LiPo 3S
Battery Energy: 82Wh
Weight (g): 365
Charging Temperature Range (°C): 5~45?
Storage Temperature & Humidity: -10~30?,65±20%RH
Recommended Storage Temperature: 22~28?
Max Charging Power Consumption (W): 93W
Charging Time: 90min
Charger
Input: 100-240 V, 50/60 Hz, 1.5A
Output: 13.2 V = 5 A
5V=3A 9V=2A 12V=1.5A
Voltage: 13.2 ± 0.1 V
Rated Power: 66 W
APP
iOS: Autel Explorer
Android: Autel Explorer
Storage
SD Storage:
Standard: 32 GB,
max. support 256GB ( UHS-3 rating required )
Internal Storage: 8GB
