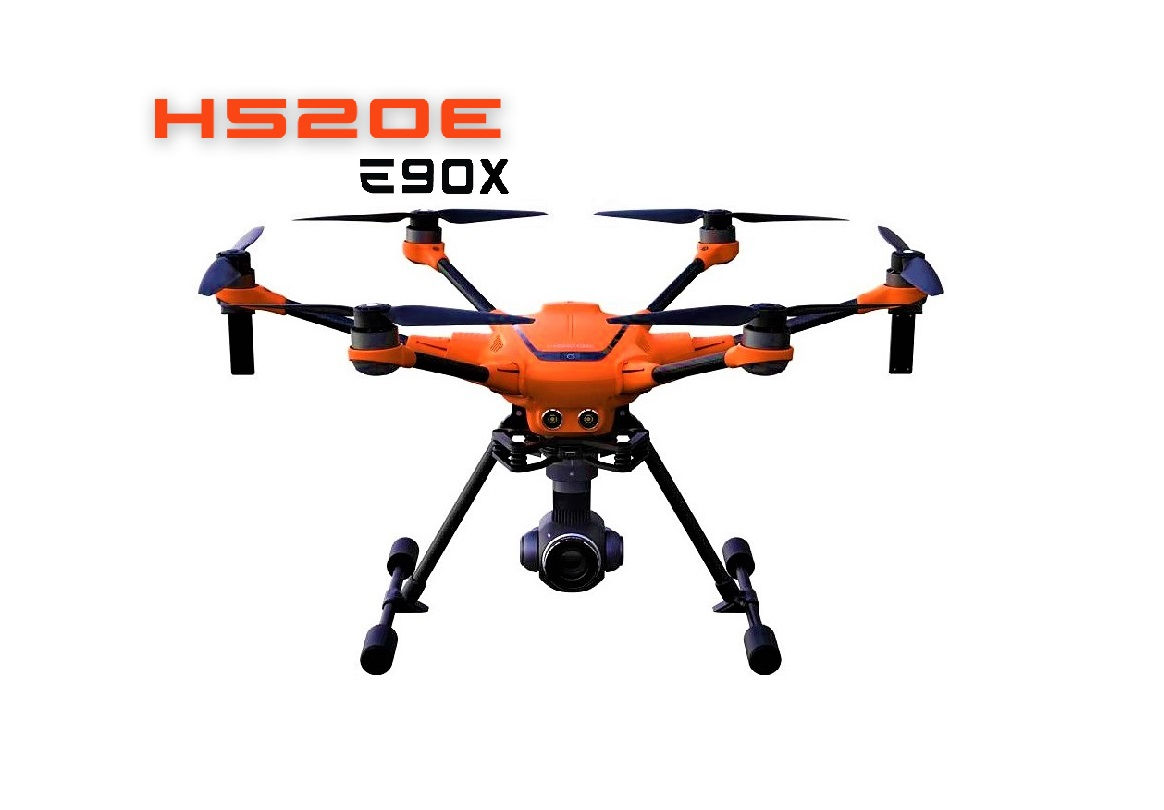

YUNEEC H520E with E90x Camera
International delivey
support@orzsystems.com
Medium size UAV made for mapping and inspections missions, 1' 4K-60FPS\20MP camera
5 rotor fail-safe, GCS with
Integrated 7” rugged touch screen,
DataPilot mission planner enabling autonomous flights,
Hot swappable cameras,
Retractable landing gear, up to 35 min flight time, up to 6km flight range
H520E
Flight Time: 25-30 min (Optimal Conditions)
Battery: 4S-6200mAh LiPo
Take Off Weight: 4.1lbs (1860 g) Without Camera
Diagonal Length: 520 mm (20.5 in Without Blades)
Dimensions: 21.7x19x12.1in (551x482x309 mm)
Max Speed: 44.7 mph (20 m/s)
Max Ascent Speed: 11.1 mph (5 m/s)
Max Descent Speed: 6.7 mph (3 m/s)
Max Flight Height: 1,640 ft (500 m)
Max Angular Velocity: 120°/s
Motors: 720kV
Charger: SC4000-4H
Operating Temperature: 32°F - 104°F (0°C - 40°C)
Storage Temperature: 14°F - 122°F (-10°C - 50°C)
ST16E Ground Station
Screen: 7 inch Android Touch Screen
Operating System: Android ™
Channels: 16
*Transmission Distance: Up to 1.7 Miles
Battery: 3.6V 8700mAh 31.32Wh Li-Ion
Frequency: 2.4 GHz
Videolink Frequency: 2.4 GHz
Videolink Resolution: 720 p
Operating Temperature: 32°F - 104°F (0°C - 40°C)
Video Outputs: HDMI
Obstacle Avoidance System
Sensor: Ultrasonic (Front)
Flight Speed: 8.9 mph (4 m/s)
Operating Environment: Height > 4.9 ft (1.5 m)
Distance to Obstacles < 16 ft (< 5 m)
Compatible Payloads
E90x (YUNE90XUS)
BURST SPEED: (PHOTO) 3@1S / 5@1S / 7@1S
COLOR SENSITIVITY: RGB
COMPRESSION BIT RATE: 100MBPS
COMPRESSION TYPE: AVC/HEVC
DNR: 2D FILTER
EFFECTIVE PIXELS: 20 MEGAPIXELS
FOV: DFOV 90.3 ± 3°
FOCAL LENGTH: 23MM
FRAMERATE: 24/25/30/48/50/60/120
FSTOP RANGE: F2.8 ± 5%
GIMBAL AXIS: 3
GIMBAL CONTROL ACCURACY: ± .02°
GIMBAL MAX. CONTROL RANGE: TILT: -90° - 30° PAN: 360° LIMITLESS
GIMBAL MAX. CONTROL SPEED: TILT: 50°/S PAN: 50°/S
ISO RANGE: 100 - 12800
MAX VIDEO RESOLUTION: 4K 60FPS
MINIMUM SD CARD CLASS: 10 U3
MTF 104LP/MM, CENTER: 0.6, CORNER : 0.4
SENSOR SIZE: 1 INCH CMOS
SHUTTER SPEED: 1/8000 - 8S
SHUTTER TYPE: ROLLING
SNR: ISO100, SNR 36DB
STORAGE TEMPERATURE: 10°C - 30°C
WEIGHT: 330G
